Hosting egui

With the egui feature, a SoftwareRenderer renders egui frames into the same surface Frame draws into.

[dependencies]
dream-soft-render = { version = "1", features = ["egui"] }

The crate re-exports the egui it is built against as dream_soft_render::egui_adapter::egui, egui 0.34. Use it, or depend on the same egui version yourself; types from two versions of egui do not mix.

One frame#

use dream_soft_render::SoftwareRenderer;
use dream_soft_render::egui_adapter::{RenderFrame, egui};

fn render_ui(
    renderer: &mut SoftwareRenderer,
    context: &egui::Context,
) -> std::io::Result<bool> {
    let outcome = renderer.render_egui(
        640,
        480,
        &RenderFrame::new(context),
        |ui| {
            egui::CentralPanel::default().show_inside(ui, |ui| {
                ui.heading("Import settings");
                ui.label("Choose Morrowind.ini to continue.");
            });
        },
    )?;
    // false: the frame matched the previous one bit for bit, and nothing
    // was redrawn.
    Ok(outcome.surface_changed)
}

fn main() -> std::io::Result<()> {
    let mut renderer = SoftwareRenderer::default();
    let context = egui::Context::default();
    assert!(render_ui(&mut renderer, &context)?);
    assert!(!render_ui(&mut renderer, &context)?);
    Ok(())
}

One render_egui(width, height, frame, run_ui) call:

1. Sizes the surface, which starts transparent black if the size changed. It does not clear otherwise; egui’s panels paint their own background.
2. Runs run_ui through egui::Context::run_ui, which calls it again when egui wants another layout pass. egui is told the screen is width × height points, and that the largest texture side is 1024 texels, which bounds its font atlas.
3. Applies egui’s texture uploads: the font atlas, and images loaded through the context.
4. Tessellates egui’s shapes at one pixel per point.
5. Rasterizes the meshes, unless the frame is the same as the last one.
6. Frees the textures egui released, and returns a RenderOutcome.

render_egui builds egui’s RawInput itself, and it holds the screen size, the texture limit and nothing else: no pointer, no keys, no time. A host with input handles it inside the UI closure. dream-ini’s PortMaster build does: it reads its controller there and moves focus and state itself.

Points and pixels#

One egui point is one surface pixel, always. Leave egui’s zoom factor and pixels per point at 1: the frame is laid out and tessellated at one pixel per point whatever they say, and text drawn for another scale comes out with misplaced glyphs.

Frames that did not change#

egui asks for frames it does not need: animations settling, cursor blinks, extra passes when a widget changes size. Many come out identical to the last. A frame is skipped when all of these hold:

• skipping is on, which it is by default;
• the surface kept its size;
• egui uploaded no texture this frame;
• the tessellated meshes and clip rectangles are bit-identical to the last frame’s, texture ids and indices included;
• nothing touched the surface or the textures since: no begin_frame, create_texture, update_texture or free_texture, and the last frame did not fail.

A skipped frame leaves the surface as it was and reports surface_changed: false. Skip presenting it too. dream-ini skips its framebuffer copy that way.

use dream_soft_render::SoftwareRenderer;
use dream_soft_render::egui_adapter::{RenderFrame, egui};

fn main() -> std::io::Result<()> {
    let context = egui::Context::default();
    let mut renderer = SoftwareRenderer::default();
    // Rasterize every frame, as a benchmark must.
    renderer.set_skip_unchanged_frames(false);

    for _ in 0..3 {
        let outcome = renderer.render_egui(
            320,
            240,
            &RenderFrame::new(&context),
            |ui| {
                ui.label("The same every frame");
            },
        )?;
        assert!(outcome.surface_changed);
    }
    Ok(())
}

The comparison is bitwise, so -0.0 against 0.0 counts as a change. It costs one pass over the frame’s vertices and indices.

When to render again#

RenderOutcome::repaint_delay is how long egui wants to wait before the next frame: Duration::ZERO for right away, Duration::MAX when it asked for no repaint at all. A host on a battery waits for input or for that delay, whichever comes first, instead of rendering in a loop. egui_adapter::format_repaint_delay spells it for a log line, with none for Duration::MAX.

Your textures in egui#

A texture made with create_texture appears in egui through egui_texture_id:

use dream_soft_render::SoftwareRenderer;
use dream_soft_render::egui_adapter::{RenderFrame, egui, egui_texture_id};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let mut renderer = SoftwareRenderer::default();
    let context = egui::Context::default();
    let red = renderer.create_texture(1, 1, &[255, 0, 0, 255])?;

    renderer.render_egui(64, 64, &RenderFrame::new(&context), |ui| {
        ui.painter().image(
            egui_texture_id(red),
            egui::Rect::from_min_max(
                egui::pos2(0.0, 0.0),
                egui::pos2(16.0, 16.0),
            ),
            egui::Rect::from_min_max(
                egui::pos2(0.0, 0.0),
                egui::pos2(1.0, 1.0),
            ),
            egui::Color32::WHITE,
        );
    })?;
    assert_eq!(renderer.surface().pixels[..4], [255, 0, 0, 255]);
    Ok(())
}

egui_texture_id(id) is egui::TextureId::User with the id’s number. egui itself only uploads Managed textures, so the two never collide. egui::Image takes the same id.

egui’s textures#

egui’s font atlas and the images you load through Context::load_texture arrive as texture uploads and live in the renderer’s store beside yours, under the same 8 MiB budget. They are freed when egui releases them. You do not manage them.

A mesh that names a texture the renderer does not hold, such as one you freed, is skipped. It is not an error; egui’s own GPU backends skip such meshes too, with a warning.

Feathering#

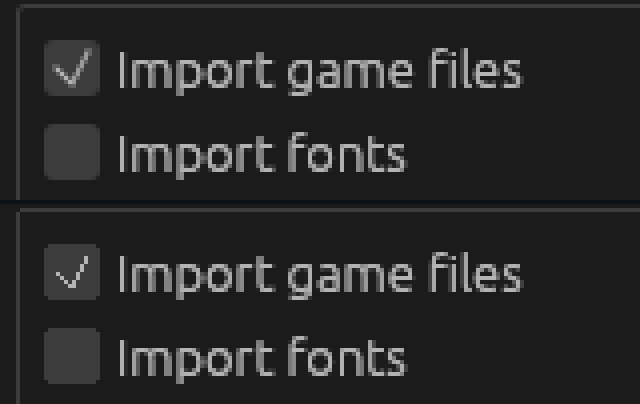

egui anti-aliases the edges of its shapes by feathering: a one-pixel strip of translucent triangles along every edge. They are thin, numerous, and the most expensive pixels the renderer draws. On a slow CPU, turn feathering off:

use dream_soft_render::egui_adapter::egui;

fn main() {
    let context = egui::Context::default();
    context.tessellation_options_mut(|options| options.feathering = false);
}

Text keeps its anti-aliasing either way, because it comes from the font atlas. Shapes get hard edges. Counted in AArch64 instructions per frame of the benchmark scenes, feathering off removes 44% of the work for a form, 17% for a page of text and 35% for a window with a shadow.

Paint callbacks#

egui paint callbacks exist to run GPU code, and there is no GPU. A frame that contains one fails with an error; nothing in it past the callback is drawn.

When a frame fails#

render_egui returns std::io::Result. It fails when:

The two mesh errors carry the crate’s own Error, the one Frame::mesh returns for the same indices; error.get_ref() and downcast_ref::<dream_soft_render::Error>() reach it. egui checks mesh indices only in debug builds, so in release a hand-built egui::Shape::mesh with a bad index gets this far.

A failed frame may have drawn some of its meshes, and it has applied the uploads before the one that failed. The next frame rasterizes in full. egui does not send an upload twice, so a texture whose upload failed stays missing, and meshes that use it are skipped, until egui uploads it again.

Error converts from std::io::Error, as Error::Raster with the message, so a function that returns dream_soft_render::Error can use ? on render_egui.

The diagnostics log#

RenderFrame::new(context) turns every diagnostic off. The other fields turn them on, and a struct update keeps the rest:

use std::time::Duration;

use dream_soft_render::SoftwareRenderer;
use dream_soft_render::egui_adapter::{RenderFrame, egui};

fn main() -> std::io::Result<()> {
    let context = egui::Context::default();
    let mut renderer = SoftwareRenderer::default();
    let print = |line: &str| eprintln!("{line}");
    let frame = RenderFrame {
        log: Some(&print),
        log_frame: true,
        frame_index: 1,
        hitch_log_threshold: Some(Duration::from_millis(33)),
        ..RenderFrame::new(&context)
    };
    let outcome = renderer.render_egui(64, 48, &frame, |ui| {
        ui.label("Logged");
    })?;
    let timings = outcome.timings.expect("log_frame measures the stages");
    if timings.total > Duration::from_millis(33).as_micros() {
        eprintln!("hitch: {} us", timings.total);
    }
    Ok(())
}

With log_frame, the lines look like this:

software renderer frame=1 surface=64x48 bytes=12288 textures=1 texture_bytes=131072 primitives=1
software renderer timings frame=1 resize_clear_us=47 egui_run_us=3531 texture_apply_us=1105 tessellate_us=8 rasterize_us=110 texture_free_us=0 repaint_delay=0ns raster_skipped=false total_us=4810

The lines are for people reading a log. The same numbers are in RenderOutcome’s texture_evidence and timings, which is where a program should read them.
